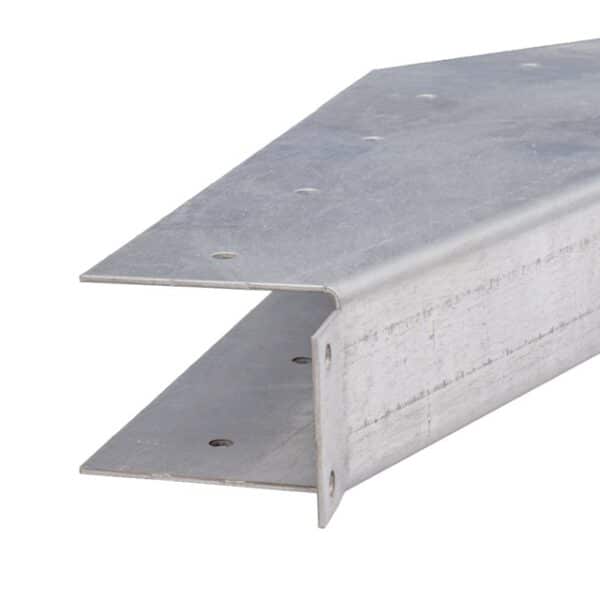

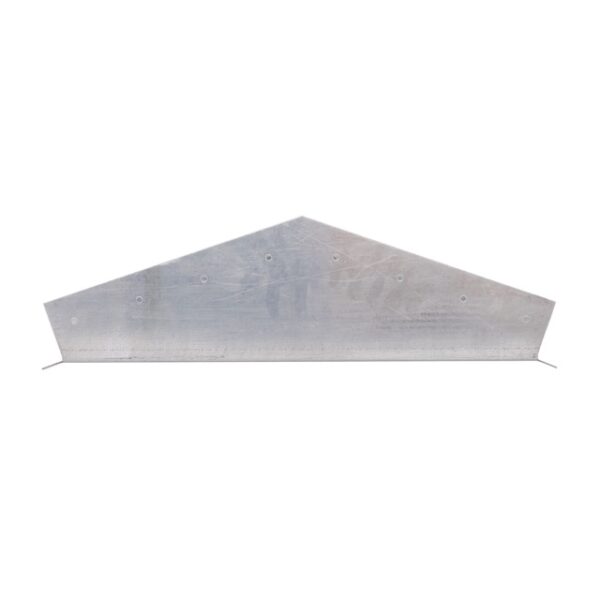

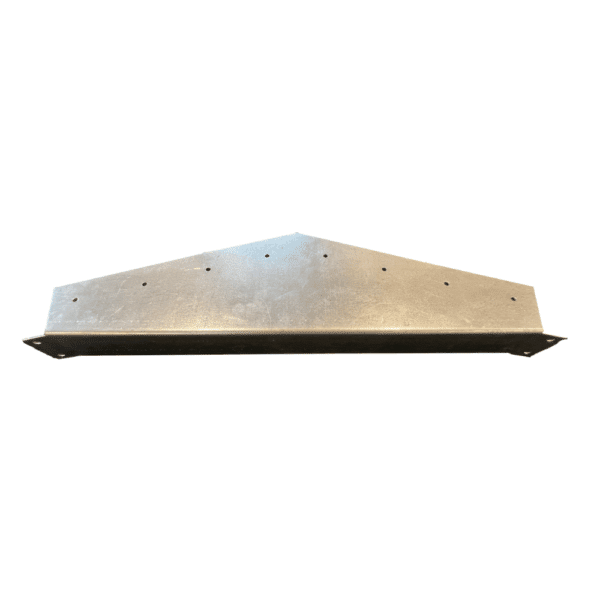

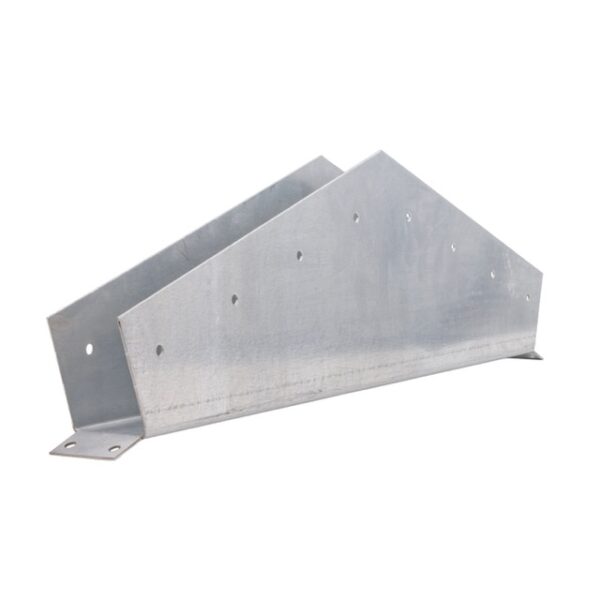

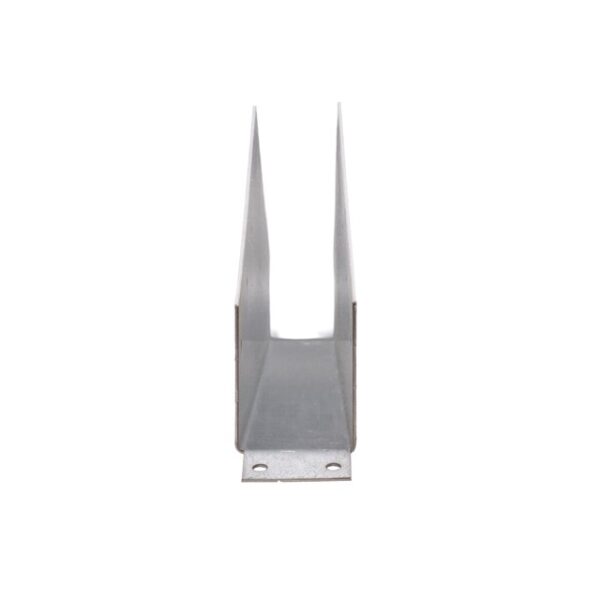

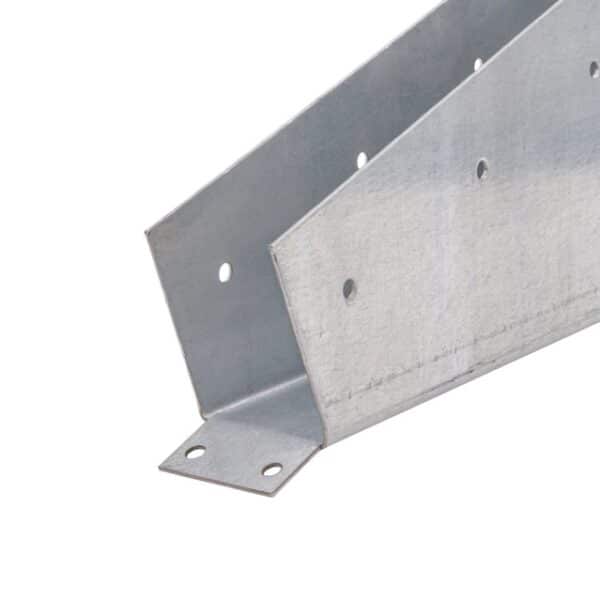

Double Center Brackets- Metal Carport Supplies
Price range: $30.85 through $31.69
Note: This product is best suited for larger wholesale quantities or custom orders.
Engineered for high-load ridge connections, our double center brackets sandwich the roof peak with two galvanized plates to clamp both rafters into a single, rigid spine. The result is a straighter ridge, less racking, and superior resistance to wind uplift and snow loads.
Need fewer than 50? We recommend two Flat Center Brackets instead — same joint strength, no minimum.
Wholesalers should contact us or request a wholesale quote.
Features and Benefits
| Part # | Pitch | A | B | C | Gauge | Holes | Weight | 50-99 | 100-499 | 500+ |
|---|---|---|---|---|---|---|---|---|---|---|
| 427524-14D | 4/12 | 2¾” | 24” | 2” | 14 | 20 | 5.16 | $31.03 | $28.23 | $25.16 |
| 400224-14D | 4/12 | 2” | 24” | 2¼” | 14 | 20 | $31.38 | $28.54 | $25.66 | |
| 422524-14D | 4/12 | 2¼” | 24” | 2½” | 14 | 20 | 5.5 | $31.69 | $28.84 | $25.08 |
| 327524-14D | 3/12 | 2¾” | 24” | 2” | 14 | 20 | 5.07 | $30.85 | $28.09 | $25.30 |
| 300224-14D | 3/12 | 2” | 24” | 2¼” | 14 | 20 | $31.21 | $28.38 | $25.54 | |
| 322524-14D | 3/12 | 2¼” | 24” | 2½” | 14 | 20 | 4.9 | $31.51 | $28.66 | $25.79 |
- Dual galvanized plates: Two steel plates fasten both rafters at the roof peak for a rigid joint.
- Peak clamp design: Wraps the ridge connection to handle high loads and reduce flex.
- Preformed alignment: Shaped bracket guides quick, accurate installation.
- Secure fastening: Double galvanized plates clamp both rafters at the peak for a rigid, high‑load joint.
- Improved stability: Reinforces the ridge, reducing racking and flex under wind or snow loads.
- Faster assembly: Preformed bracket design streamlines alignment and installation at the roof peak.
- Consistent framing: Ensures repeatable rafter positioning for cleaner lines and better fit with panels.
- Corrosion resistance: Galvanized steel resists rust, extending service life in outdoor conditions.
| DPB Part Numbers | 427516-14D, 400216-14D, 422516-14D, 427524-14D, 400224-14D, 422524-14D, 327524-14D, 300224-14D, 322524-14D |
|---|
